Floorplan - 2017 Shasta RVs Oasis 26DB
-
-
-
-
+6-
Sleeps 8
-
1 Slides
-
BunkhouseFront Bedroom
-
30ft Long
-
5,253 lbs

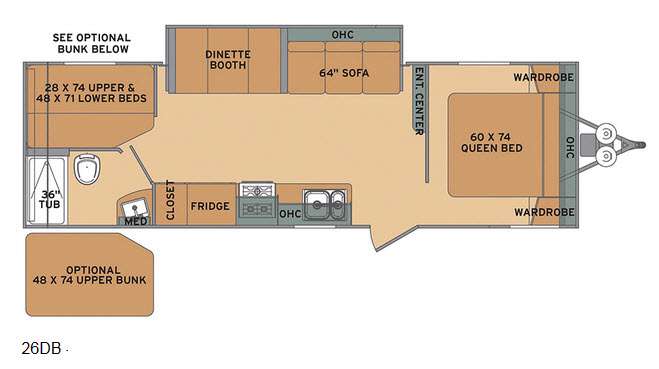

26DB Floorplan
Specifications
| Sleeps | 8 | Slides | 1 |
| Length | 29 ft 11 in | Ext Width | 8 ft |
| Ext Height | 10 ft 7 in | Hitch Weight | 589 lbs |
| GVWR | 7589 lbs | Dry Weight | 5253 lbs |
| Cargo Capacity | 2336 lbs | Fresh Water Capacity | 42 gals |
| Grey Water Capacity | 36 gals | Black Water Capacity | 36 gals |
| Furnace BTU | 18000 btu | Number Of Bunks | 2 |
| Available Beds | Queen | Refrigerator Size | 6 cu ft |
| Cooktop Burners | 3 | Shower Size | 36" |
| Number of Awnings | 1 | Water Heater Capacity | 6 gal |
| Water Heater Type | DSI Gas | AC BTU | 13500 btu |
| Awning Info | 17' Electric | Axle Count | 2 |
| Shower Type | Tub/Shower Combo | VIN | 5ZT2SSRB9HE008601 |
Description
This Shasta Oasis 26DB travel trailer features bunks, a large single slide, sleeping for seven or eight, plus all the amenities of home to be comfortable on the road.
Step inside and notice the front bedroom area to your right. There is a queen size bed for a comfortable night's rest along with ample storage for your things. You will find dual bedside wardrobes, and an overhead cabinet above the head of the bed.
As you step back into the living area you will find plenty of open floor space thanks to the large slide out 64" sofa and booth dinette featured along the road side. The sofa offers overhead cabinets for your things, and both can easily be transformed into sleeping space at night.
The kitchen makes cooking up light meals and snacks simple with a double sink, a three burner range, and refrigerator. There is also ample overhead cabinets for dishes and other cooking items. Plus you will find lower cabinets as well.
A nice closet can be found next to the refrigerator for clothing storage just outside the rear corner bath which provides a 36" tub/shower, a toilet, and corner sink with overhead medicine cabinet.
Right next to the bath there is sleeping for three or four depending on your choice. Standard set-up includes a lower 48" x 71" bed with a 28" x 74" bunk above. You can also choose to have a 48" x 74" upper bunk in place of the single bunk above if you like allowing additional sleeping space, plus more.
Features
- Front Hitch Light
- Bumper with Drain Hose Carrier and End Caps
- Baggage Doors
- Straight Axles with Electric Brakes
- E-Z Lube Hubs
- Amber Patio Light with Inside Switch
- Radius Entry Door with Screen
- Molded Rain Gutter with Extra Long Spouts
- Black-Framed Radius Tinted Safety Glass Windows
- LP Bottle
- Front Diamond Plate Rock Guard
Power Systems
- 12V Demand Water Pump
- Systems Monitor Panel
- Auto-Ignition Furnace with Wall Thermostat
- Water Heater Bypass
- Water System Winterization Kit
- 18K BTU Furnace
- 6-Gal Water Heater
Interior
- Pocket-Bored and Screwed Cabinets
- Full Extension Ball Bearing Drawer Guides
- Mini Blinds
- Box Valances in Living Area
- Jack Knife Sofa
- Cable TV Hookup in Living Area and in Bedroom
- RG6 Coax Cable
- Beauflor Tile Flooring
- Under Bed Storage
Kitchen
- Residential 60/40 Sink
- High Goose Neck Faucet
- Range Hood with Exhaust Fan and Light
Bathroom
- Powered Roof Vent
- Marine Toilet with Foot Flush
- Medicine Cabinet with Mirror
- Large Sink
- .024 Aluminum Exterior Skin
- R-7 Fiberglass Insulation in Sidewall, Floor and Roof
- Radius Wood Rafters
- Aerodynamic Radius Front Profile
- 16″-On-Center Wood Wall Studs
- Electric Room Slides
- One-Piece Rubber Roof with 12-Yr. Warranty
- 8′ Exterior Width
- Cambered Steel I-Beam Frame
Safety
- Carbon Monoxide Detector
- LP Leak Detector
- Fire Extinguisher and Smoke Alarm
Exterior Options
- Spare Tire and Carrier
- (4) Stab Jacks
- Electric Awning
- Outside Shower
- 2nd LP Bottle with Auto Changeover and ABS Cover
Interior Options
- Range with Oven in Place of Cooktop
- 13.5K BTU Ducted A/C
- 15K BTU Ducted A/C
- 15K BTU in Place of 13.5K BTU A/C
- 48″ Top Bunk IPO Std 28″ Bunk (25RS, 26DB & 28BK)
- 6-Gal. Gas DSI HW Heater
- 13.5 BTU A/C
- 3-Burner Cooktop
- Microwave Oven
- 6-CU. FT. Refrigerator
- Radial Tires
- Patio Awning
- 6-Gal. Gas DSI HW Heater
- Microwave Oven
- 13.5 BTU A/C
- 3-CU. FT. Refrigerator
- 3-Burner Cooktop
- Radial Tires
- Coach Net Roadside Assistance
- Patio Awning
